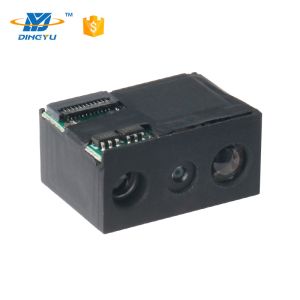

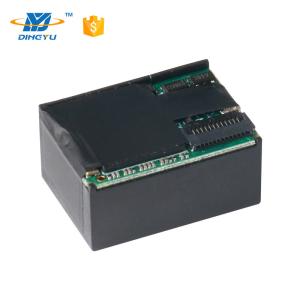

    Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module

    Ask Lasest Price
    Brand Name : Dingyu/ DY SCAN
    Model Number : DE2290
    Certification : CE, ROHS, FCC, IEC
    Price : Negotiate
    Payment Terms : T/T, Paypal, Alibaba
    Supply Ability : 100,000pcs/month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module

    Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module


    Parameter


    Weight3.4g(without cable)
    Size21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
    Interface

    USB,USB-com(Need driver) ,TTL

    (USB protocol:Full Speed ,USB 2.0)

    Light SourceLighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm
    CMOS1280*800 CMOS
    CUPARM32-bit
    startup time750ms
    Resolution≥3mil/0.076mm(PCS90%,CODE 39)
    Depth of field30-500mm
    Scan modeTrigger mode,Auto sense mode, Command control
    prompting modeLED indicating lamp,buzzer
    Reading angleRoll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
    visual angleHorizontal 40°× Vertical 30°
    Motion tolerance65cm/s
    Power input3.3V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA
    Print contrast20%PCS
    Ambient Light70000Lux
    Symbologies

    1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code)

    2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

    operating temperature-20℃ to 55℃
    storage temperature-20℃ to 60℃
    Humidity5% to 95%(non-condensing)
    Transport vibration test10H@125RPM
