Scanning Gun 2D CMOS Handheld Bar Code Scanner Android Barcode
Scanner for Inventory POS Terminal
Product description

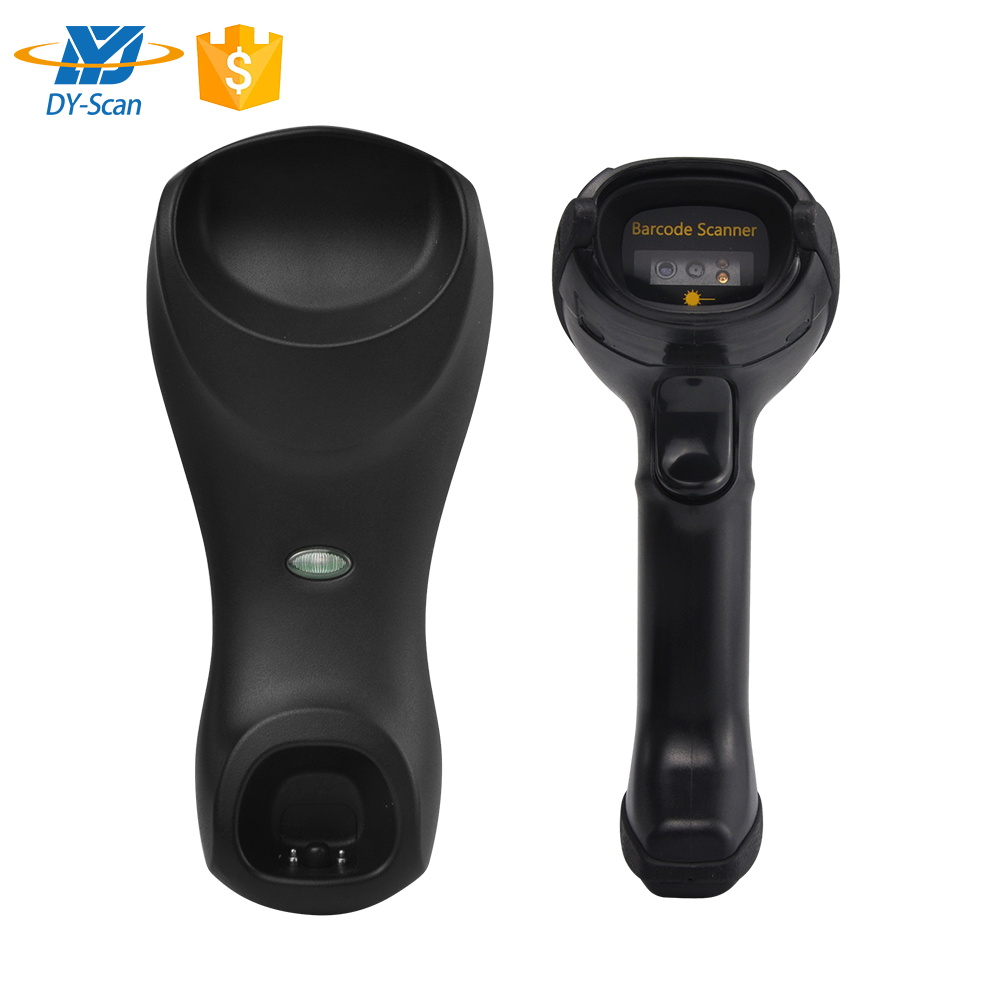

DS6202B is a high-performance 2D wireless Bluetooth barcode scanner
equipped with advanced CMOS image recognition technology.
It effortlessly scans barcodes from various media, including paper,
products, and screens.
Widely applicable in manufacturing, warehousing, logistics,
healthcare, retail chains, mobile payments, express delivery,
inventory management, food traceability, asset inventory, and more.
Features
- Ergonomic design, comfortable using.
- Read all mainstream 1D & 2D barcodes in the market easily.
- High-performance processor, fast decoding. (3mil)
- Support multiple languages and systems.
- Interface:USB, Wireless 2.4G, Bluetooth
- Long transmission distance, intelligent automatic connection when
it’s beyond range, not manual setting.
- Widely used in supermarket, warehouse, mobile payment, chain
stores.
Parameter
| Scan Type | CMOS |
| Light Source | Red LEDs 625nm(aiming & Illumination) |
| CPU | 32-bit |
| Resolution | ≥4mil |
| Decoding speed | 35CM/S |
| Depth of field | 35mm~500mm |
| Scan Mode | Manual ,Auto Sense |
| Scan angle | Roll±360°, Pitch±60°, Skew±55°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz 100m, bluetooth 30m, (Open distance) |
| Storage | 350Kb(over 20,000 Product code) |
| Battery capacity | 2000mAh |
| Battery charging time | About 7 h |
| Continuous working time | ≥16 h |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of
5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,Maxicode,etc. |
| Weight | ≈205g(scanner); ≈230g(base)(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| L200mm * W90mm * H51mm(Communication base) |
| Interface Type | USB |
| Communication | USB, Wireless 2.4G, bluetooth |
| Power Supply | DC 5V@180mA(work) |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode
scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend
machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested
1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing.
Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box,
user manual. And we have our own technical team to support ODM
service.
